Agricultural Irrigation Water Deep Well Submersible Pump 200M3/H 500M3/H Big Capacity
200m3/h 500m3/h subemrsible pump parameters:
( cast iron/stainless steel 304/316/316l/duplex stainless/super stainless steel/904L and 380v/440v/480v/600v/660v .
| Diameter | Model | Motor Power | Flow Range | Head Range |
| Inch (") | QJ Series | kw | hp | m3/h | m |
| 10" | 250QJ160-150/10 | 110 | 150 | 186-214 | 128-170 |
| 12" | 300QJ200-20/1 | 18.5 | 25 | 186-214 | 17-23 |
| 12" | 300QJ200-30/1 | 25 | 35 | 186-214 | 27-33 |
| 12" | 300QJ200-40/2 | 37 | 50 | 186-214 | 35-45 |
| 12" | 300QJ200-60/3 | 55 | 75 | 186-214 | 51-69 |
| 12" | 300QJ200-80/4 | 75 | 100 | 186-214 | 68-92 |
| 12" | 300QJ200-100/5 | 90 | 120 | 186-214 | 85-115 |
| 12" | 300QJ200-120/6 | 110 | 150 | 186-214 | 100-138 |
| 12" | 300QJ500-15/1 | 30 | 40 | 460-540 | 14-16 |
| 12" | 300QJ500-30/2 | 75 | 100 | 460-540 | 29-32 |
| 12" | 300QJ500-45/3 | 110 | 150 | 460-540 | 43-47 |
| 12" | 300QJ500-60/4 | 140 | 190 | 460-540 | 57-63 |
| 12" | 300QJ500-75/5 | 185 | 250 | 460-540 | 72-78 |
| 12" | 300QJ500-90/6 | 220 | 300 | 460-540 | 87-93 |
| 14" | 400QJ500-20/1 | 45 | 60 | 460-540 | 18-22 |
| 14" | 400QJ500-40/1 | 90 | 120 | 460-540 | 38-42 |
| 14" | 400QJ500-80/2 | 185 | 250 | 460-540 | 77-83 |
Submersible pump performance range
1. Diameter: 10 12 14 inch submersible pump 2. Flow: 200m3/h 500m3/h submersible water pump
3. Head: 14m-170m
4. Power: 18.5kw-220kw
5. Voltage: 380v/440v/460v/480v/600v/660v/1140v
6. Material: Cast iron/stainless steel 304/316/316l/duplex stainless/super stainless steel/904l

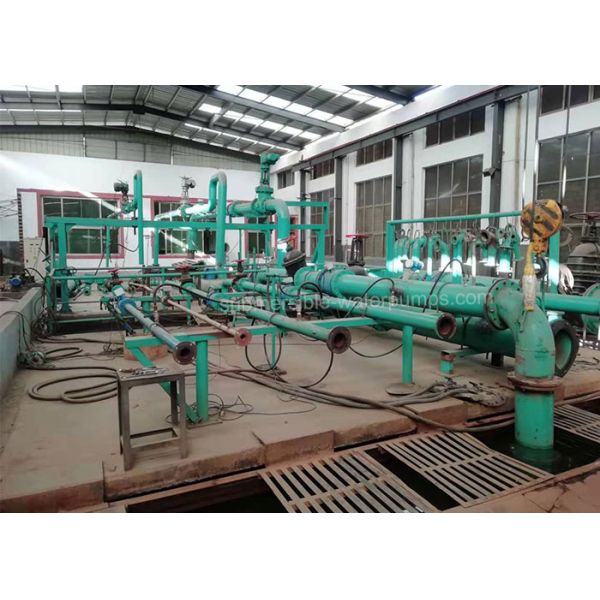

Testing: We test each single every submersible water pump before delivery, such as material analysis testing, casting testing, and submersible pump submerged in water for 48 hours to test leaking or not . Also we could send testing video, testing pictures, testing report.
Package: all water pumps are packed with shock absorption,moisture-proof package, standard export wooden case
1. What is your MOQ?
our MOQ is 1 piece.
2. Are you a trading company or a water pump manufacturer?
We are a ODM&OEM competitive reputable submersible water pump manufacturer.
3. How to know submersible pump quality?
Professional submersible pump manufacturers will test each submersible pump, raw material testing, pump set testing, testing video, testing report.
4. How to select a submersible pump type?
Application: clean water, sewage water, sea water
Material: cast iron/stainless steel 304/316/316L/duplex stainless/904L(sole pump manufacturer in China)
Flow rate
Head lift
Horsepower (hp) or kilowatts (kw)
Voltage and frequency: 380v/440v/480v/600v/660v/1140v.......3 phase 50hz/60hz
Attached pump accessories: cable length, control cabinet, frequency converter, valve, etc.
5. How many horsepower is a submersible well pump?
7.5kw-220kw are in stock, 220kw-410kw (special order) in Shenlong pump factory.
